- Place of Origin: Shandong, China (Mainland)
- Brand Name: WZA
- Model Number: 14139/14282
Quick Details
Structure: Taper
Type: Roller
Brand Name: WZA or OEM
Bore Size: 34.976 mm
Outside Diameter: 71.996 mm
Model Number: 14139/14282
Precision Rating: P0 P6 P5 P2
Seals Type: open
Number of Row: Single Row
Place of Origin: Shandong, China (Mainland)
Samples: Free sample and technical service
Service: OEM Service, Customized service
Tolerance grade: ABEC-1 ABEC-3
Cage: brass cage,steel cage,nylon cage
Quality: ISO9001:2008
Material: Chrome steel & Gcr15 steel
Feature: Low noise, Long life, High quality
Vibration: V1 V2 V3
Noise level: Z1 Z2 Z3
Packaging & Delivery
| Packaging Details: | a.Anti-rust oil plastic bag paper box carton pallet.
b.Anti-rust oil waterproof belt professional belt wooden box pallet.
c.According to the requirement of customer. |
|---|
| Delivery Detail: | Shipped in 3 days after payment |
|---|

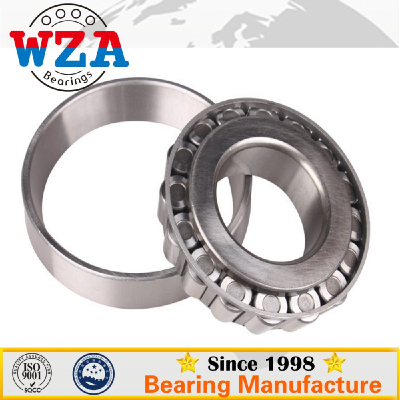

Product Name | Taper Roller Bearing 14139/14282
|
Bearing Materials | GCr15/Chrome Steel/Stainless Steel |
Cage | Solid Steel, Solid Brass, Polyamide |
Clearance | C0, C2, C3, C4, C5 |
Precision Rating | P0, P6, P5, P4 |
Quality Certificate | ISO9001:2008 |
ID*OD*W(mm) | 34.976×71.996×19.002mm |
Basic Dynamic
Load Capacity | 53.9KN |
Basic Static Load Capacity | 67KN |
Reference Speed | 7500r/min |
Limiting Speed | 11000r/min |
Net Weight(kg) | 0.350KGS |
Brand Name | WZA |
MOQ | 1 Piece |
Port | Qingdao/Shanghai |
Payment Terms | L/C, T/T,Paypal,Western Union,Trade Assurance,Secure Payment(Escrow) |
Service | OEM or Customized service |
Delivery Period | 3-20days |
Type | 30000 series,31000series,32000series,33000series,35000 series,38000 series,etc; |
More Models
| Item Number | Specification (dxDxT) | Weight (KG) |
| 19138/19267X | 34.976×68.000×16.020 | 0.260 |
| 19138/19268 | 34.976×68.262×15.875 | 0.260 |
| 14139/14274 | 34.975×69.012×19.845 | 0.320 |
| 14139/14276 | 34.975×69.012×19.845 | 0.330 |
| 14139/14282 | 34.975×71.996×19.002 | 0.350 |
| 19138/19283 | 34.976×72.000×17.018 | 0.320 |
| 14139/14283 | 34.975×72.085×22.385 | 0.400 |
| 28138/28300X | 34.975×76.200×20.625 | 0.430 |
| 28138/28315 | 34.975×80.000×21.006 | 0.490 |
| L68149/L68110 | 34.987×59.131×15.875 | 0.170 |
| L68149/L68111 | 34.987×59.974×15.875 | 0.170 |
| LM78349A/LM78310A | 34.987×61.973×16.700 | 0.210 |
| LM78349/LM78310A | 34.987×61.973×16.700 | 0.200 |
| LM78349A/LM78310C | 34.987×61.973×18.000 | 0.220 |
| LM78349/LM78310C | 34.987×61.973×18.000 | 0.210 |
| M38547/M38511 | 34.987×65.987×20.638 | 0.300 |
| JS-3549A/JS-3510 | 35.000×70.000×25.270 | 0.410 |
| 19138X/19283 | 35.000×72.000×17.018 | 0.320 |
| 19138X/19283X | 35.000×72.000×17.018 | 0.320 |
| 23691/23620 | 35.000×73.025×26.988 | 0.520 |
| 23691/23621 | 35.000×73.025×26.988 | 0.520 |
| 14139X/14274-S | 35.000×75.311×19.845 | 0.400 |
| 26883/26822 | 35.000×79.375×23.812 | 0.600 |
| 339/332 | 35.000×80.000×21.000 | 0.530 |
| 26883/26824 | 35.000×80.000×23.812 | 0.620 |
| 26883/26820 | 35.000×80.167×25.400 | 0.630 |
| 3480/3422 | 35.000×80.167×29.370 | 0.720 |
| 421/412A | 35.000×82.550×28.575 | 0.750 |
| 421/414 | 35.000×88.500×26.988 | 0.870 |
| LM48545/LM48510 | 35.128×65.088×18.034 | 0.250 |
| 2880/2820 | 35.306×73.025×22.225 | 0.420 |
| HM88648/HM88610 | 35.717×72.233×25.400 | 0.480 |
| 25880/25820 | 36.487×73.025×23.812 | 0.450 |
| 25880/25821 | 36.487×73.025×23.812 | 0.450 |
| 2780/2735X | 26.487×73.025×23.812 | 0.470 |
| 2794/2735X | 36.487×73.025×23.812 | 0.470 |
| 2780/2736 | 36.487×74.612×23.812 | 0.500 |
| 2780/2720 | 36.487×76.200×23.812 | 0.520 |
| 2780/2729 | 36.487×76.200×23.812 | 0.530 |
| 2794/2720 | 36.487×76.200×23.812 | 0.510 |
| 2780/2731 | 36.487×79.375×23.812 | 0.570 |
| 19143/19268 | 36.512×68.262×15.875 | 0.250 |
| 13682/13621 | 36.512×69.012×19.050 | 0.300 |
| 19143/19283 | 36.512×72.000×17.018 | 0.310 |
| 19143/19283X | 36.512×72.000×17.018 | 0.310 |
| 16143/16282 | 36.512×72.000×19.000 | 0.350 |
| 16143/16284 | 36.512×72.238×20.638 | 0.370 |
| 31597/31520 | 36.512×76.200×29.370 | 0.590 |
| 31597/31521 | 36.512×76.200×29.370 | 0.600 |
| HM89448/HM89410 | 36.512×76.200×29.370 | 0.620 |
| HM89449/HM89410 | 36.512×76.200×29.370 | 0.620 |
| HM89449/HM89411 | 36.512×76.200×29.370 | 0.630 |
| 3479/3420 | 36.512×79.375×29.370 | 0.680 |
| HM89249/HM89210 | 36.512×79.375×29.370 | 0.690 |
| 26877/26824 | 36.512×80.000×23.812 | 0.600 |
| 26877/26820 | 36.512×80.167×25.400 | 0.610 |
| 3479/3422 | 36.512×80.167×29.370 | 0.700 |
| 25570/25520 | 36.512×82.931×23.812 | 0.660 |
| 3878/3820 | 36.512×85.725×30.162 | 0.870 |
| 44143/44348 | 36.512×88.500×25.400 | 0.730 |
| 46143/46368 | 36.512×93.662×31.750 | 1.150 |
